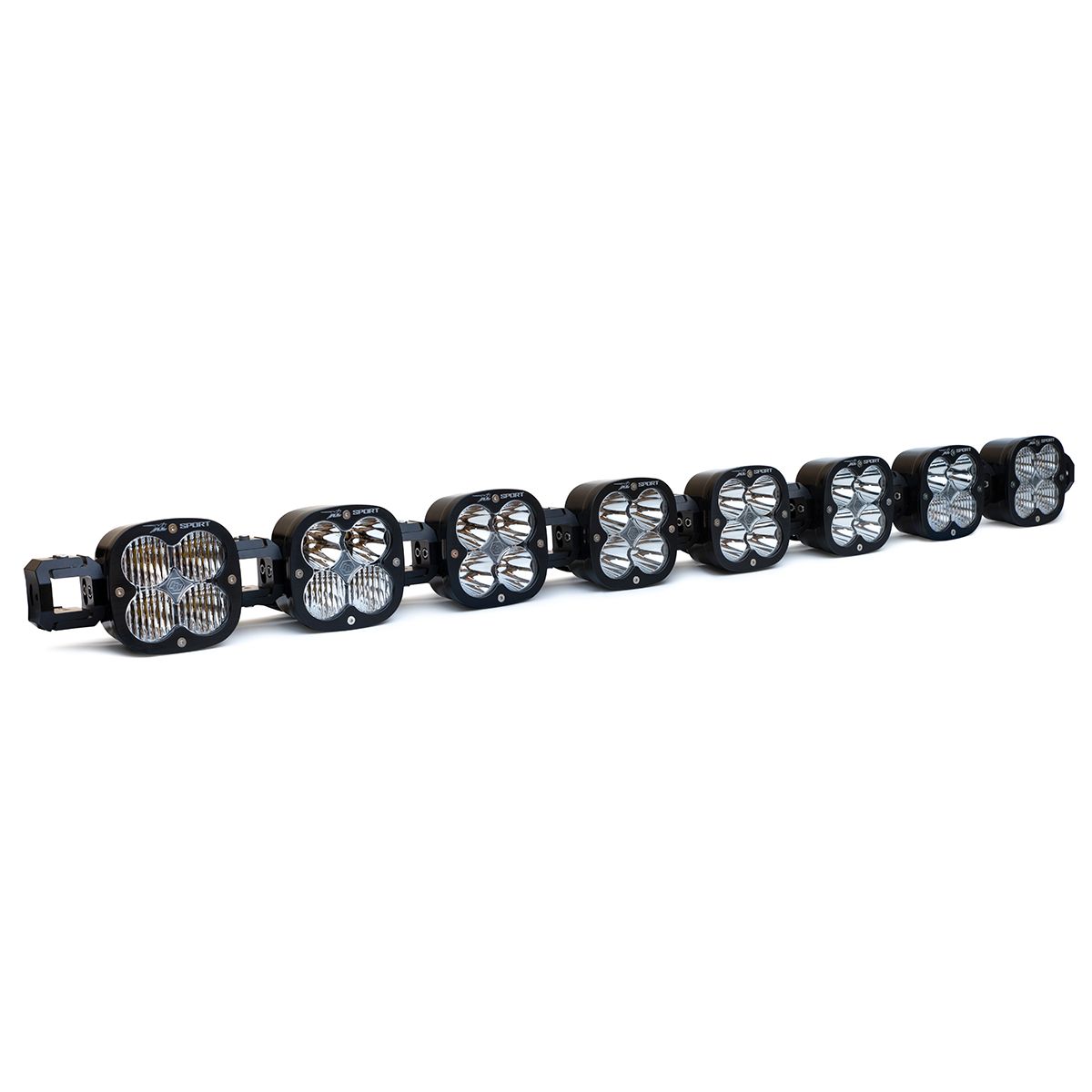

XL Linkable LED Light Bar

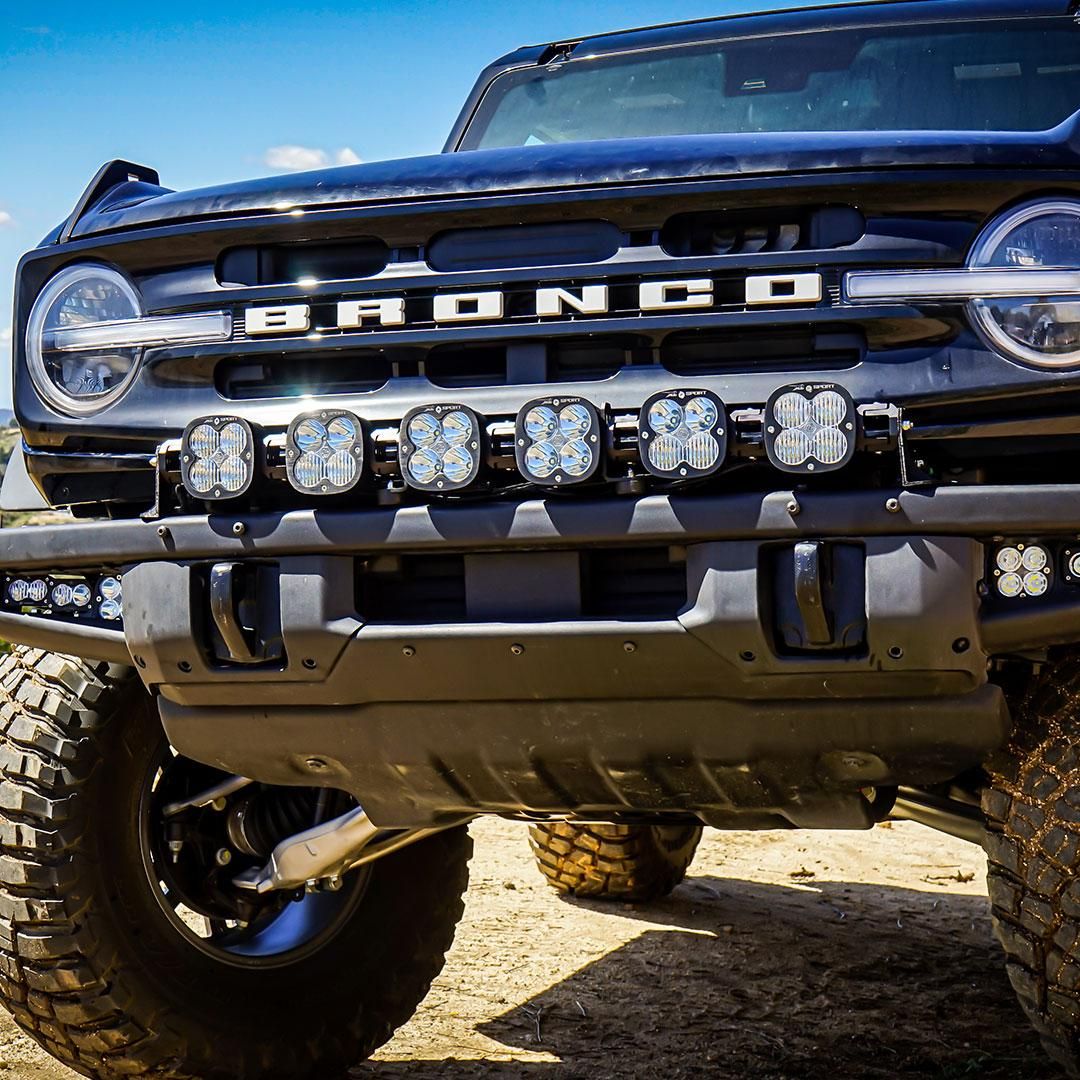

Experience full adjustment and total performance with the Baja Designs XL Linkable LED light bar kit, engineered for enthusiasts seeking to take charge with a lighting package that is completely customizable. Built around our popular XL Sport shallow moto housing, each light offers up 3,162 raw lumens each from our next generation LEDs, the XL Linkable can be built with 3 up to 8 forward projecting lights that provide a smooth blend due to the use of our wide cornering, driving combo and spot lenses illuminating zones 1, 2, 3 and 4 simultaneously. The unique feature of our XL Linkable system provides 45 degrees of vertical pitch adjustment within each light or the entire unit. Completely independent horizontal adjustment per light allows for straight or arc configurations to perfectly match the lines of your vehicle’s bumper or roofline. The wiring comes fully crimped and trimmed, allowing for easy installation and the ability to add links down the road, and black rock guards are included to protect the lights when not in use. If you're looking to have a lighting system that performs as well as it looks, this is the auxiliary light kit for you!

Additional Attributes:

GTIN: 00810031741267
Add-On: Accessories-660104-Lens Kit (Driving/Combo; Clear)
Amperage Rating (A): 16
Average Rated Life (hr.): 49,930
Beam Pattern: Multi-Pattern
Bezel Material: Billet Machined Aluminum
Brightness (Lumens): 25,200
Depth (in.): 2.8
Description: 8XL Sport; Multi-Pattern; Clear
Height (in.): 4.43
Housing Color: Black
Housing Material: Hard Anodized and Powder Coated Cast Aluminum
Length (in.): 51.52
Lens Color: Clear
Lens Material: Hardcoated Polycarbonate
Light Quantity: 8
Lighting Modes: Beam
Lighting Quantity: 32
Lighting Technology: LED
Lighting Type: Forward Projecting
Mounting Hardware Description: Pre-Load Kit; Links; Rock Guards
Mounting Hardware Included: Yes
Mounting Hardware Material: Stainless Steel
Overvoltage Protection: Built-In
Product Type: XL Linkable LED Light Bar
Prop 65 – Short Label: CR
Prop 65 Warning Label: Prop 65 WARNING: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Prop 65 Yes/No: Yes
Standards/Compliance (Durability): Exceeds MIL-STD810G (Mil-Spec Testing)
Standards/Compliance (Impact Resistance): IK10 Compliant (Mechanical Impact Testing)
Standards/Compliance (Water Resistance): IP69K (Waterproof up to 9ft & Pressure Washable)
Universal or Specific: Universal
Wattage (W): 208
Wiring Harness Included: Yes

Extended Information:

Emissions : Emissions Compliance Exempt
Life Cycle Status: Available To Order

Packaging:

Quantity of Each: 1
Package UOM: EA
Weight:

PDF:

FGXX_XLLinkable-INS_001
