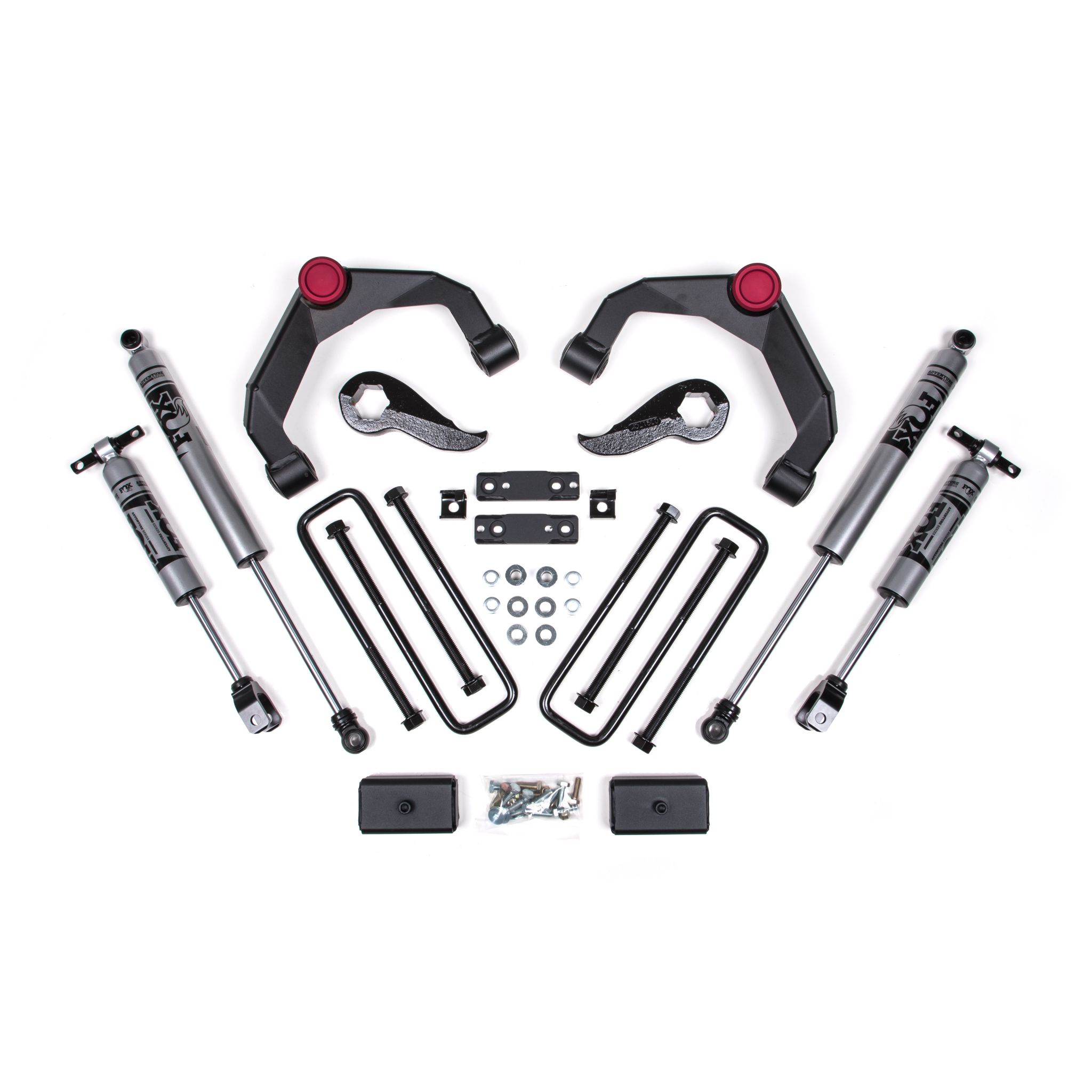

Zone 3″ Adventure Series Lift Kit

$2,152.74

High strength UCAs are boxed and fully welded. They are specially designed with an indexed ball joint cup to correct ball joint operating angle for more suspension travel
Cast construction indexed torsion bar keys to provide additional ride height while maximizing ground clearance
Front differential relocation brackets to correct CV axle operating angle
Sway bar relocation brackets to maintain clearance and proper operating angle
2″ rear lift blocks and heavy duty u-bolts to level the stance
FOX 2.0 adventure series IFP gas shocks to improve performance
Maintains ride and handling characteristics with clearance for 35″ tires
Allows for improve offroad performance with more droop travel.

SKU: FQMS-ZONC49F Category: Suspension Lift Kit

Take your new HD to the next level with the 3" Adventure Series Lift Kit from Zone Offroad. Engineered for easy bolt on fitment and improved travel, these 3? Adventure Series Lift Kits bridge that gap between an entry level leveling kit and full IFS lift system offering next level performance without the cost and extensive installation. The heart of this new system is a pair of heavy duty replacement upper control arms (UCAs) designed to improve range of motion for more suspension travel when wheeling in rough terrain. These new control arms dwarf the factory units and are built from high strnegth steel, boxed and fully welded with CNC-machined bushing and ball joint cups repositioned to operate in the neutral position at 3? of lift. They use OE durometer rubber bushings and greaseable OE-style heavy duty ball joints for quiet, reliable operation and superior corrosion resistance to uniball style control arms.

Along with the arms, a pair of reindexed cast steel torsion bar keys are supplied up front to lift vehicle. Zone Offroad includes a small differential relocation kit (4WD models only) to correct CV axle operating angles without effecting ground clearance. The sway bar operating angle is corrected with the use of a pair of relocation brackets allowing for full droop of the suspension and proper clearance. In the rear a 2? block and u-bolt kit is used to create a level to slightly tail high stance. Rounding out the kit are a set of Nitro gas or FOX adventure series IFP gas shocks at all 4 corners for a smooth ride and impressive performance across any terrain. Take your late model GM 2500HD to the next level with Zone Offroad!

Additional Attributes:

GTIN: 00810156360930
Accommodates Factory Wheels: See Notes
Adjustable: No
Back Spacing: 5-5.75″
Back Spacing 2: 5-6.18″
Back Spacing 3: 5-6.18″
California Proposition 65: ! WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov
Finish: Powdercoat
Front Lift Height: 3″
Front Lift Method: Torsion Key
Installation Difficulty: 3 out of 5
Installation Time: 3-4 hrs
Lift Type: Lift Kit
Material: Steel
Max Tire Size: 35 x 12.5
Max Tire Size 2: 295 / 60
Max Tire Size 3: 285 x 65
Rear Lift Height: 2″
Rear Lift Method: Fabricated Blocks
Requires Metal Cutting: No
Requires Welding: No
Wheel Size: 20 x 9
Wheel Size 2: 20 x 9
Wheel Size 3: 20 x 9
